GE

GE OEC 9900 Elite C-Arm System

Available
SKU: 1198
Regular price $145,000.00

If a formal quote is needed, add products to cart and submit a request.

Condition: Refurbished
Type: C-Arm
Lead Time: Request quote
Warranty: 90-Day Parts and Labor

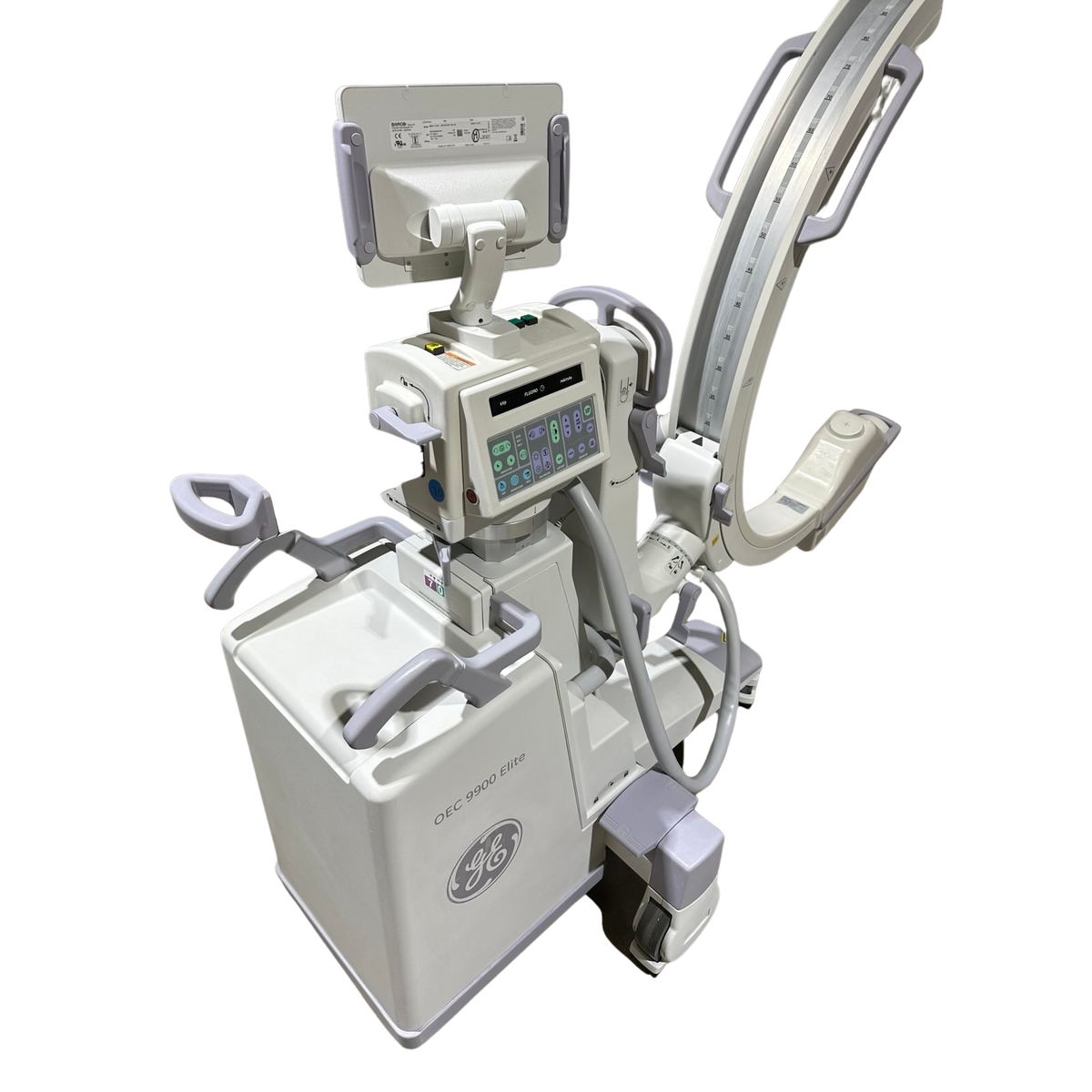

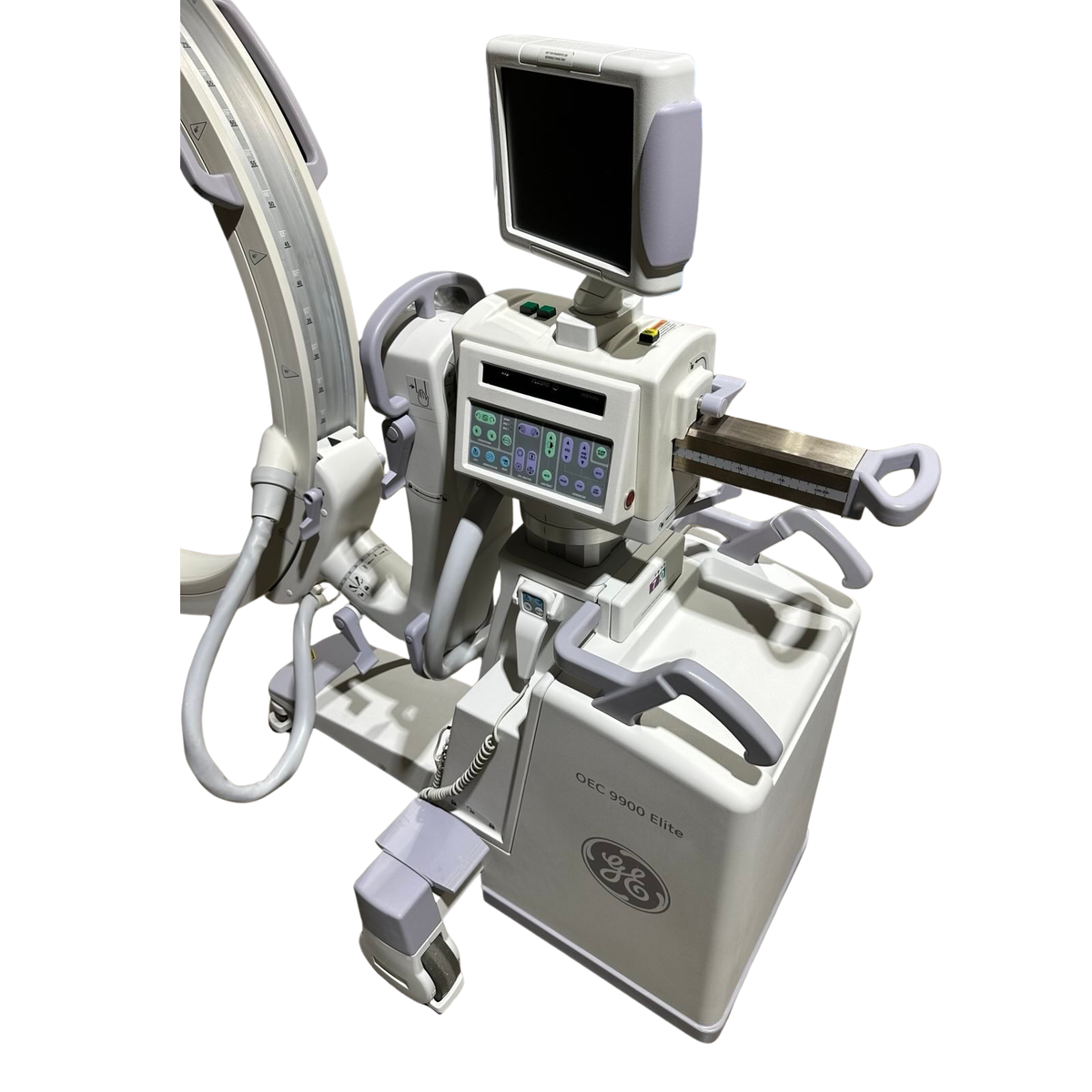

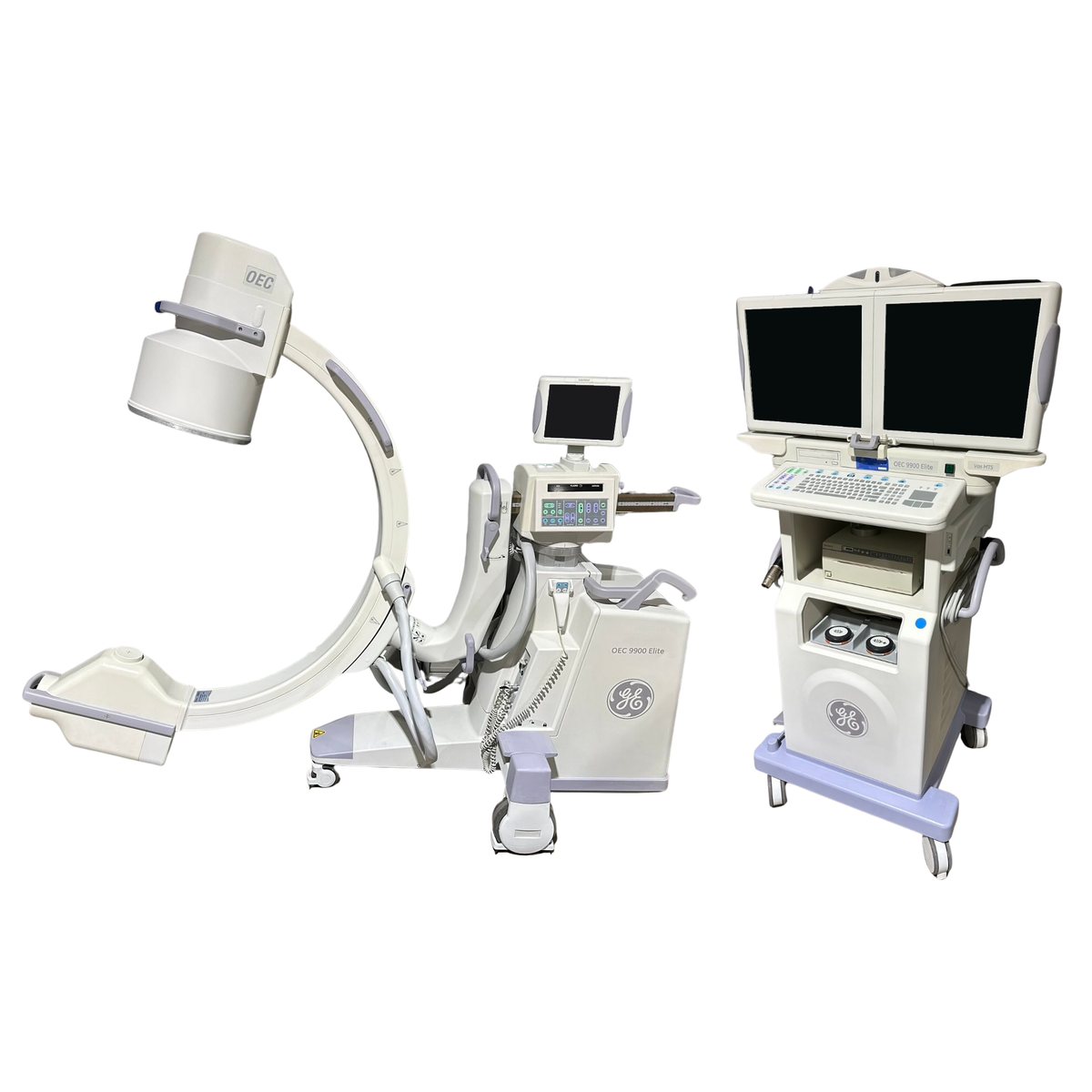

GE OEC 9900 Elite C-Arm System:

The GE OEC 9900 is an industry-leading c-arm that provides 1k x 1k high resolution imaging in a convenient, mobile configuration. The unit’s deep arch allows for premium access for cardiovascular and pain management procedures. High definition monitors mounted on an articulating arm allow clinicians to view imaging results from anywhere in the procedure suite.

GE OEC 9900 Elite Features:

  • Mobile c-arm provides excellent image equality and an easy-to-use interface.
  • 1k x 1k high resolution imaging technology on a convenient, mobile system.
  • Provides high quality images while maintaining low dosage.
  • Ideal for any hospital or outpatient setting.
  • Versatile unit designed to handle both simple and challenging imaging cases.
  • C-arm features a deep arch, allowing for premium patient access for cardiovascular and pain management procedures.
  • Quick and easy positioning of the C-arm with superior articulation capabilities.
  • Simple user interface helps to reduce procedure time and improve efficiency.
  • Unique SmartView pivot joint allows clinicians to achieve true lateral imaging, minimizing the need for repeated exposures.
  • Flat panel monitors mounted on an articulating arm, allow viewing from any angle in the imaging suite.
  • Dual control mainframe and left-to-right layout means easy access for fast operation.
  • Dynamic Range Management (DRM) technology provides uncompromised image quality.
  • Image for longer periods of time with unique x-ray tube and cooling system.
  • Unique battery buffer technology allows for longer c-arm on-times.
  • OEC 9900 system features 100 times more image computing power than previous C-arms in this series.
  • Preset imaging profiles help to enhance features of interest.
  • Remote service connectivity performs system diagnostics.

Generator:

  • 60 kHz high frequency
  • 15 kW full-wave
  • Up to 120 kVp
  • Up to 75 mA for radiographic film exposure
  • Continuous high level fluoro up to 20 mA
  • Pulsed fluoro mode
  • Pulsed fluorography mode up to 40 mA
  • Digital spot up to 75 mA
  • Full power from outlet:
  • 50 Hz or 60 Hz
  • 120V-12A or 240V-10A

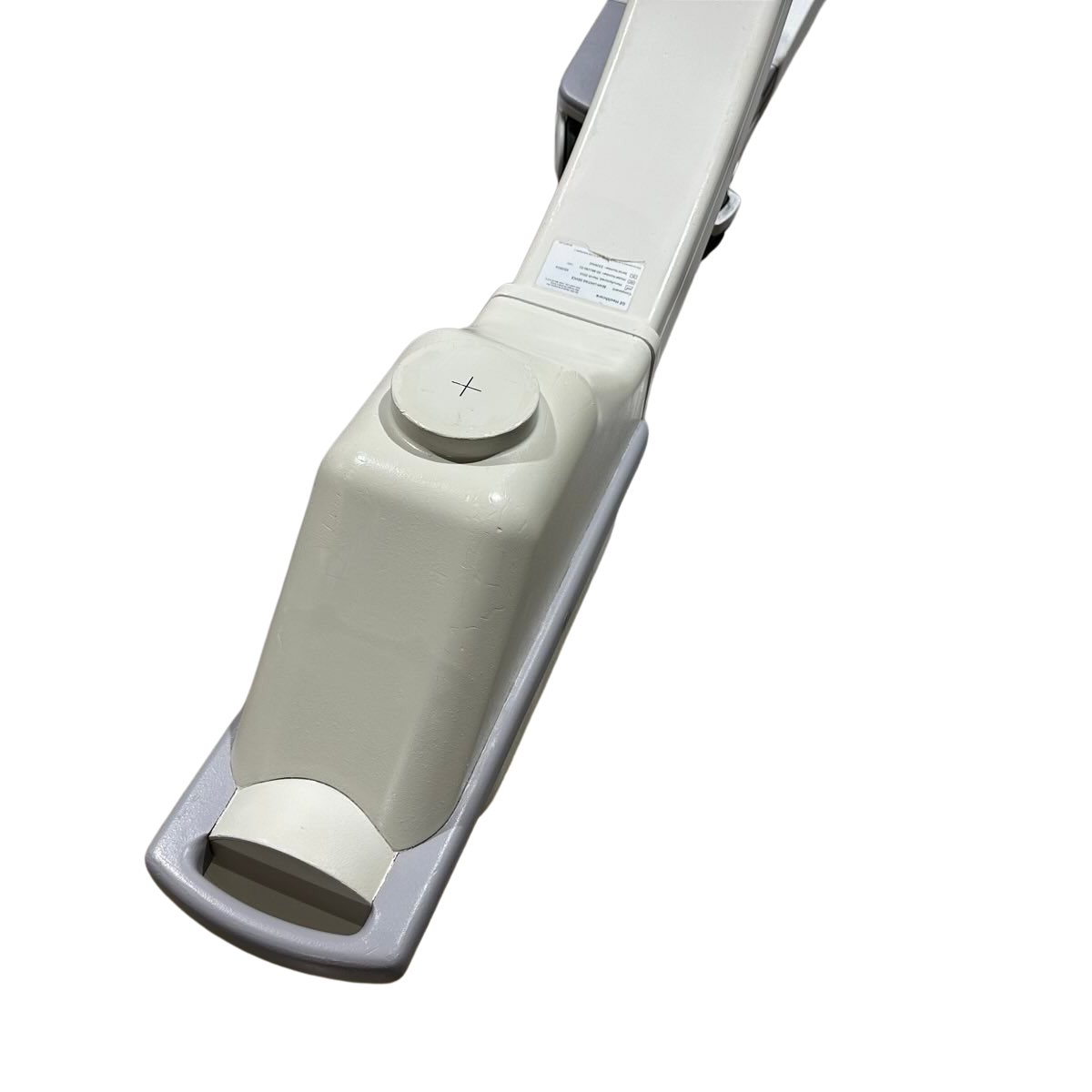

X-Ray Tube:

  • Rotating anode X-ray tube
  • Focal spots: 0.3 mm and 0.6 mm
  • Anode heat capacity: 300,000 HU
  • Anode cooling rate: 85,000 HU/min
  • Housing heat capacity: 1,600,000 HU
  • Standard housing cooling 15,000 HU/min
  • Passive housing cooling system: 22,500 HU/min. (Standard on 12 inch (31 cm) I.I. systems

PreView Collimator:

  • On-screen collimator position indication
  • PreView iris collimator
  • PreView Tungsten rotatable double leaf collimator
  • Adjusts collimators without X-ray exposure

Fluoroscopy Mode:

  • Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 10 mA normal mode
  • mA range: 1.0 – 20 mA HLF. (high level fluoro)
  • Auto and manual fluoro modes
  • Continuous, one-shot or pulsed operation
  • AutoTrak™ ABS varies mA, kVp, camera gain

Pulsed Fluoroscopy Mode:

  • Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 10 mA
  • Pulse rate: 1, 2, 4, or 8 pulses per second
  • Pulse width: 25 or 50 milliseconds
  • AutoTrak™ ABS, mA, kVp, camera gain
  • Reduces X-ray dose to patient and operator
  • High Level Pulsed Fluoroscopy Mode:
  • Vp range: 40 – 120 kVp
  • mA range: 1 – 40 mA
  • Pulse width: 25 or 50 milliseconds
  • Pulse rate: 1, 2, 4, or 8 pulses per second
  • AutoTrak™ ABS, mA, kVp, and camera gain

Digital Spot Mode:

  • kVp range: 40 – 120 kVp
  • mA range: Up to 75 mA
  • Automatic exposure termination and automatic image save

Video Camera:

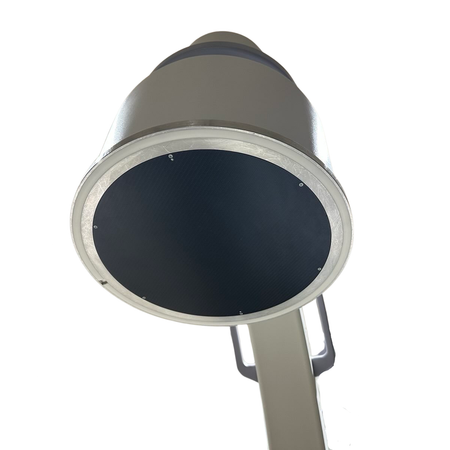

  • High resolution 1k x 1k CCD camera
  • Full frame capture
  • Motorized rotation
  • On-screen orientation indicator. (real-time feedback without fluoro.)
  • Left-right image reversal
  • Top-bottom image reversal

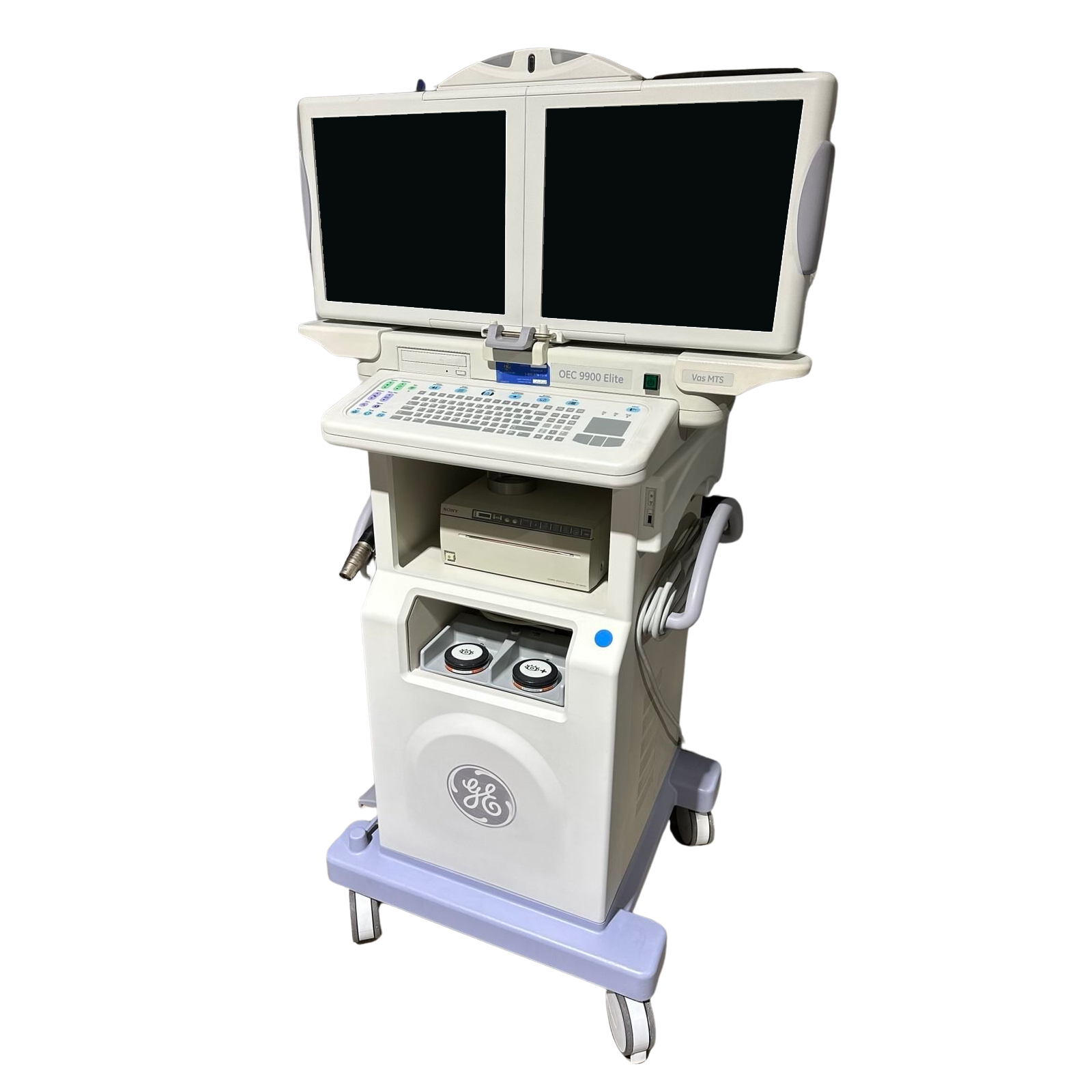

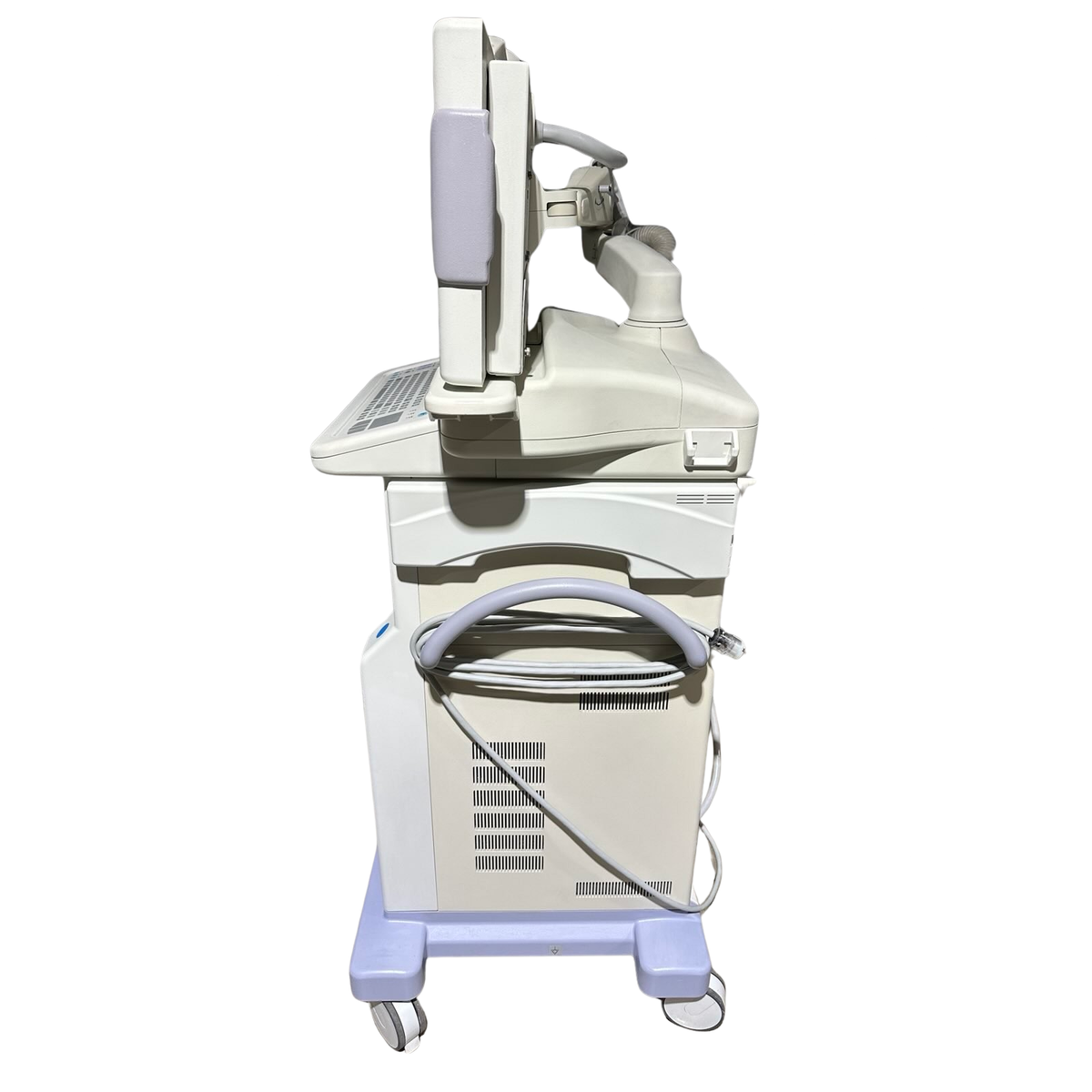

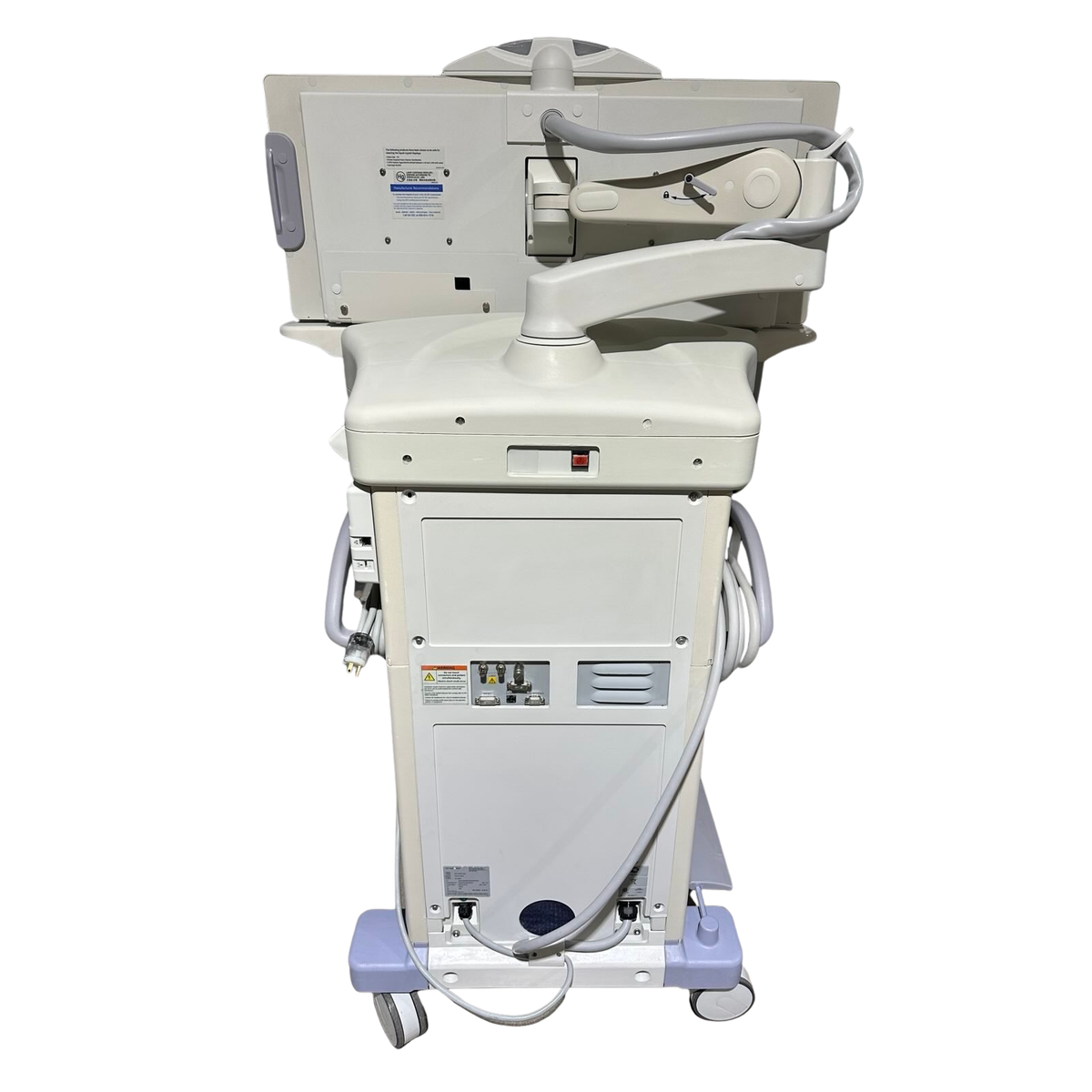

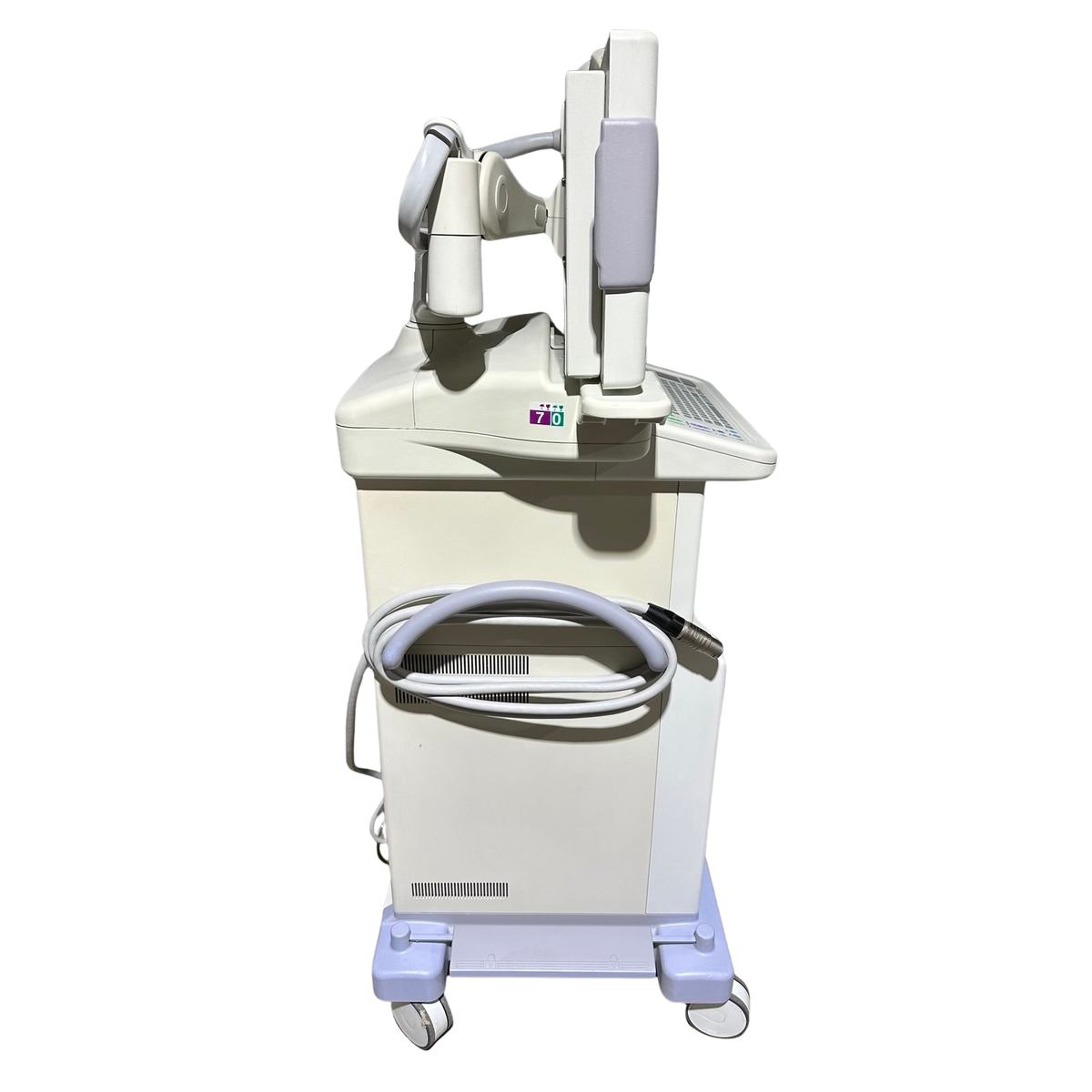

Video Monitors:

  • Dual 18” (46cm) display anti-glare, LCD flat panel monitors mounted on an articulating arm
  • 22” horizontal travel
  • 7° up/10° down
  • Monitors viewable from all four sides of workstation
  • Horizontal and vertical viewing angle 170°
  • 700 CD/M2 maximum brightness
  • Touch screen system control
  • 1280 x 1024 high resolution monitors
  • Ambient room-light compensation
  • Integrated color monitor for display of VGA, DVI, DVI-D, S-VHS

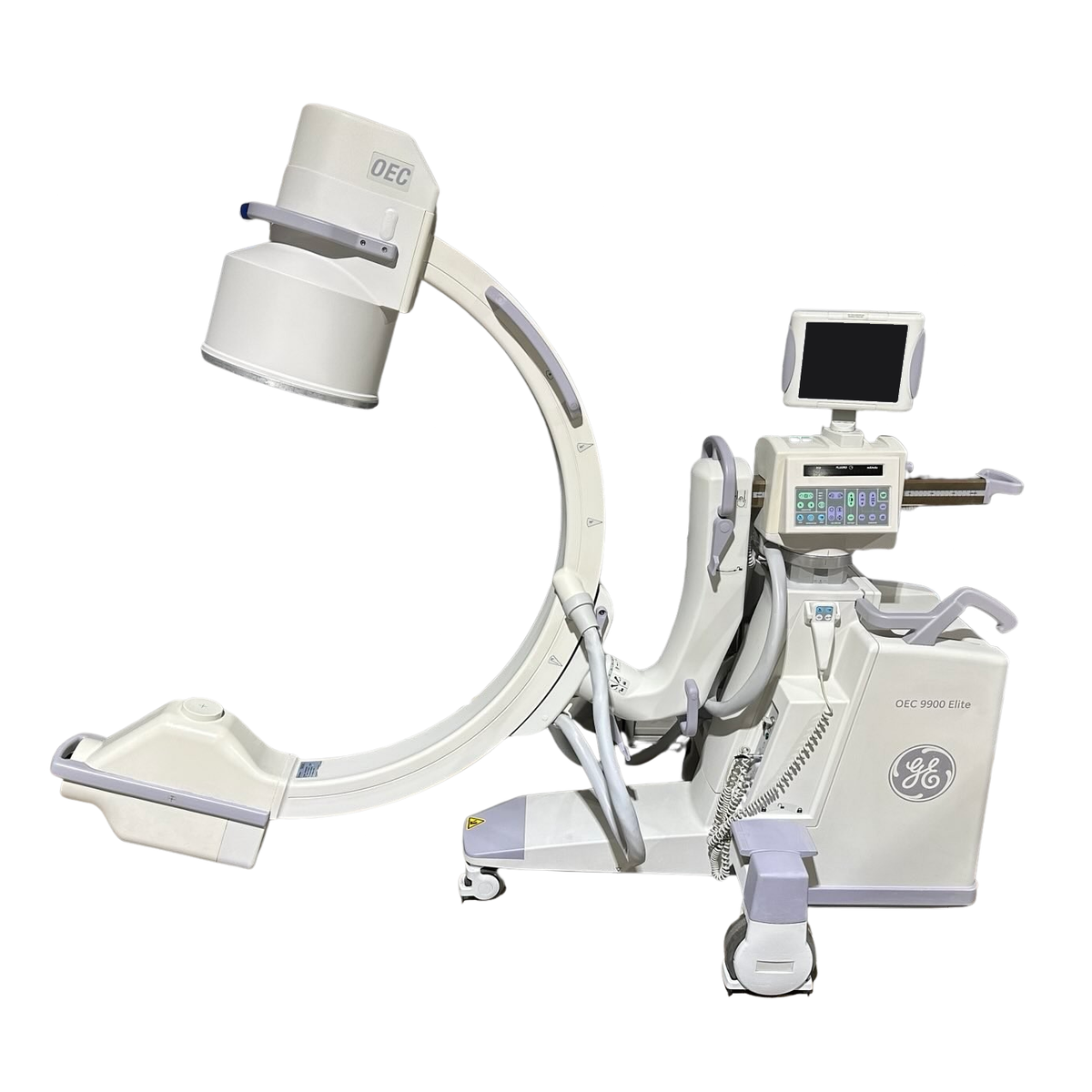

C-Arm Dimensions:

  • Height: 69.7 / 87.7 in. (1770 / 2228 mm.)
  • Width: 33.5 in. (851 mm.)
  • Length: 77.8 in. (1976 mm.)
  • Weight: 610 lbs. (277 kg.)
  1. Run serial number with OEM for necessary upgrades, recalls, and revisions (software and firmware included)
  2. Verify presence, function, and performance of internal components including, but not limited to: High voltage x-ray generator, High voltage cables, X-ray tube, Image intensifier, Vertical lift assembly, Steering mechanism, Power supplies, and Monitor displays
  3. Repair, rebuild, or replace any internal components listed above that do not meet OEM specifications
  4. Perform complete system disassembly
  5. Disinfect all components
  6. Sand and repaint all previously painted surfaces using a 4-coat process as performed by OEM
  7. Reassemble refurbished components
  8. Inspect and replace wiring harnesses as necessary
  9. Lubricate all bearings and replace as necessary
  10. Clean and calibrate all locking and braking systems
  11. Inspect, clean, and lubricate high voltage cables
  12. Install new batteries
  13. Calibrate image quality to ensure optimum performance
  14. Calibrate all other systems according to OEM specifications
  15. Perform comprehensive manufacturer PM service prior to staging
  16. Configure system to customer's specified parameters
  17. Stage system for optimum performance and reliability
  18. Label machine and components to specified requirement
