Continuous-Intermittent Wall Suction Regulator 1500 Series [New]

Continuous-Intermittent Wall Suction Regulator

• Gauge: Accuracy: ± 5% full scale deflection
• Modes: Continuous, Off, Intermittent
• Vacuum Range: Continuous regulated vacuum maximum: 300 mmHg (40 kPa) Intermittent maximum vacuum: 150 mmHg (20 kPa)
• Flow Rate: Continuous Suction: 80 LPM - Intermittent Suction: 8 LPM
• Timing Cycles: ON Cycle: 15 seconds ± 3 seconds, OFF Cycle: 8 seconds ± 3 seconds
• Safety Relief Valve Calibration: 150 mmHg (20 kPa) ±10%
• Weight (Less Fittings): Approximately 20.5oz (574 grams)
• Dimensions: Height 6.3", Width 3.3", Depth 4.2"

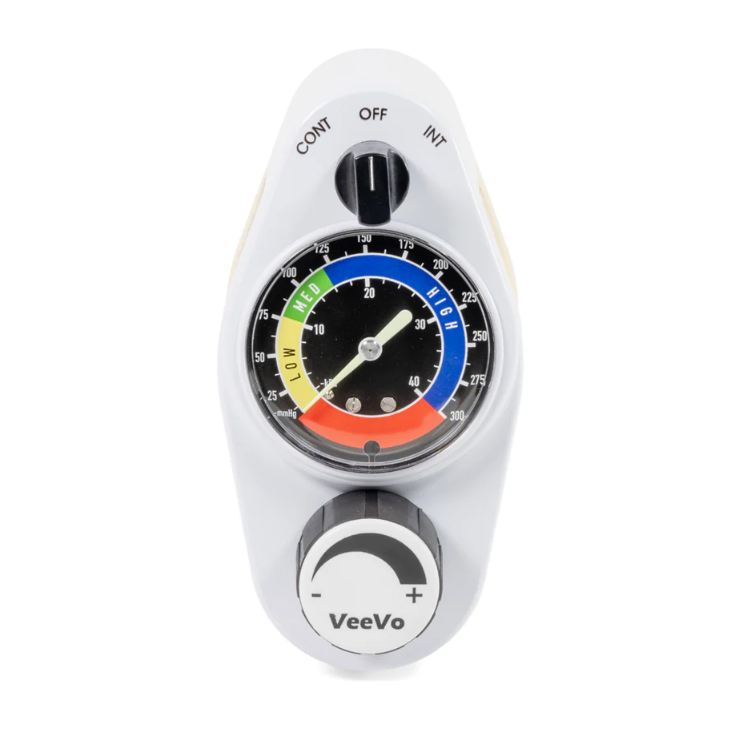

The mode selector knob is used to select the OFF (no flow), CONT(continuous, regulated suction), or INT (regulated intermittent suction mode).

The pressure adjustment knob controls the vacuum pressure that is delivered to the patient. Turning the knob clockwise (to the right) increases the vacuum level; turning the knob counter-clockwise (to the left) decreases the vacuum level. The mode selector knob should be used to turn the unit OFF, not the pressure adjustment knob.

The color-coded, dual-scale analog gauge includes a luminescent dial and needle, and is accurate to ±5% of full scale.

Color Side Grip Options (Black is standard, if other color is needed please make a request):

• Purple
• Baby Blue
• Green
• Mint
• Red
• Yellow
• Blue
• Pink
• Lavender
• Orange
• White
• Black

1. Checkout through the website.
2. Request e-invoice from sales@swmedical.com

We accept the following payment types:

• Credit/Debit Card
• Wire Transfer
• ACH
• Check

Southwest Medical accepts purchase orders from universities, schools, and government agencies.

You can submit your PO via email to sales@swmedical.com

Please allow us 24 hours to process orders. Payments can be submitted via credit/debit card, check, and wire transfer.

Purchase orders must be signed and contain following:

• PO number
• Item SKU
• Item description
• Quantity
• Complete ship-to and bill-to addresses
• Purchasing contact information

Net 30 terms must be approved before submitting an order. For more information, or to setup Southwest Medical as a vendor in your system, email sales@swmedical.com

Customer shall have a right to return for a refund within 30 days of delivery if products arrive not as advertised.

For a return to be accepted, an RMA number must be issued. Please call or email us to obtain an RMA number. Be sure to include the RMA number on all packages related to the return. All products returned may be subject to a restocking fee at SWM's discretion. Customers will be notified of restocking fee before issuance of RMA number.

For new products to qualify for a full refund, the item must be returned within the original package in brand new condition.
