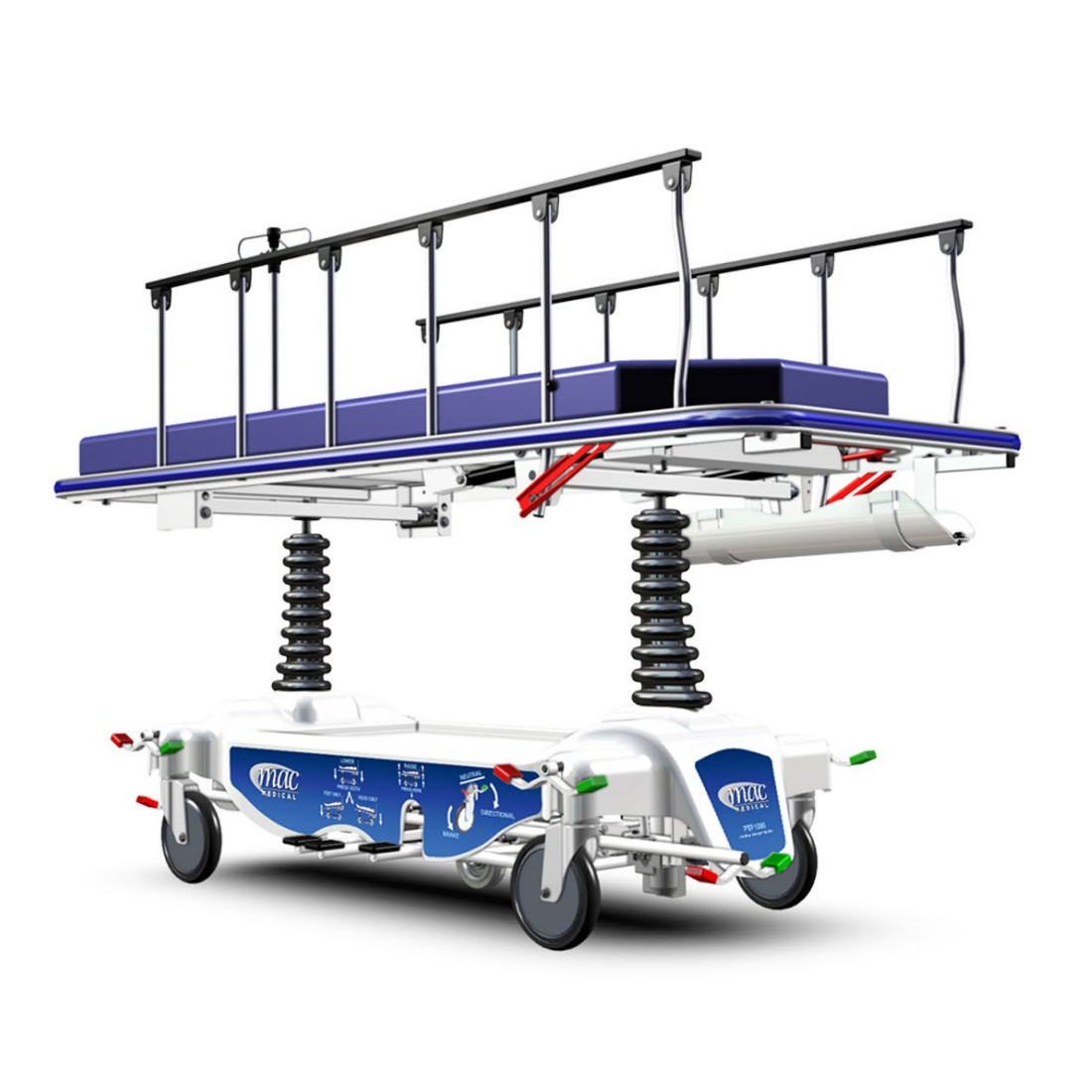

Mac Medical PTF1000 5th Wheel Transport Stretcher - New

  • 750 lb. weight capacity
  • Retractable center fifth wheel provides effortless directional movement and cornering
  • Height adjustment range:
  • 22″–35″ (bottom of mattress)
  • Ergonomically located oxygen tank holder
  • Effortless steering, pivoting, and cornering with 8″ Tente casters (4 swiveling)
  • 6 brake/steer pedals
  • Dual pedestal lift mechanism
  • Lift/Trendelenburg pedals on both sides
  • Trendelenburg & reverse Trendelenburg
    +/- 18°
  • Dual Fowler assisted lift back rest with 90° adjustability
  • Fold forward side rails with built in push handles
  • 29″ or 31″ bed width
  • 4″ comfort mattress
  • 2 hook removable telescopic IV pole
  • 6 IV pole sockets available
  • Large storage area underneath for patient belongings
  • Full perimeter bumper to protect your walls and fixtures
  • 4 restraint belt locations

The retractable center fifth wheel combines effortless directional movement and cornering for ease of use, control, and safety.

Optional Features
  • Fold down push handles
  • Knee gatch
  • Paper roll dispenser kit
  • Detachable foot board
  • Envelope style stretcher rail bumper pads
Product Specifications

PTF1000

  • 29″ bed width
  • Overall dimensions: 83 5/16″ long x 33 9/16″ wide
  • Patient surface dimensions: 75 7/16″ long x 29 1/8″ wide

PTF1000-31

  • 31″ bed width
  • Overall dimensions: 83 5/16″ long x 35 9/16″ wide
  • Patient surface dimensions: 75 7/16″ long x 31 1/8″ wide

PTF1000 Product Brochure
