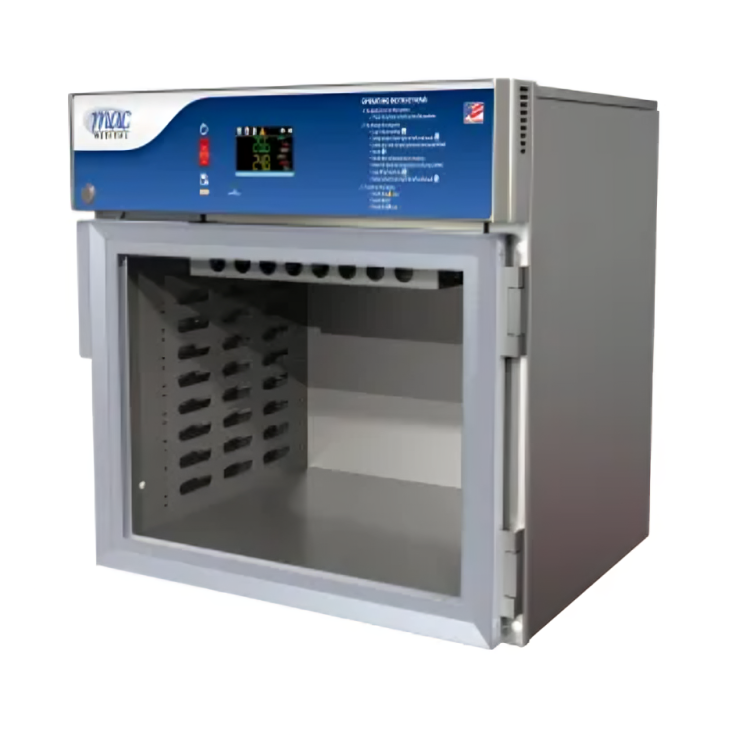

Mac Medical TS-Series Single Chamber Warming Cabinets - New

Touch Screen with Ethernet/Wi-Fi Capability

The Ethernet/Wi-Fi capable TS-Series Blanket & Fluid Warming Cabinets offer unparalleled technology by allowing remote connectivity to your warmer (via smart phone app), giving you control of your warmer wherever you are. These warmers provide the perfect blend of leading technology, value, and customer support in the industry.

 STANDARD FEATURES

  • Intuitive touch screen control
  • Intuitive software (supports multiple languages)
  • Data logging with digital signatures
  • View live trends
  • Alarm logging
  • Multi-level user security
  • Operator audit trail
  • Built in Ethernet
  • Wi-Fi capable (router to be supplied by end user)
  • Remote monitoring & control (VNC)
  • Remote tech support & diagnostics
  • Text and email alarm notifications
  • File transfer via USB or FTP web page
  • Smart phone/device access
  • Top chamber integrated door lock

OPTIONAL FEATURES

  • Full view glass door
  • Left hand door hinge
  • Mobile base or stand
  • 220/240V power supply
  • Two (2) recessed unit options
  • Celsius
  • Seismic braces
  • Roll out basket(s) with cool touch handles
  • Pass through chamber
  • Sloped top
  • Keyed door lock for lower chamber units
  • Electronic keypad lock
  • Custom sizes available

Models:

Model # SWC182424-TS:

Overall Size

20.5″D x 24″W x 24.5″H

(520.7mm x 609.6mm x 622.3mm)

Optional Adjustable Shelf

Chamber I.D.

17″D x 20″W x 15.25″H

(431.8mm x 508mm x 387.3mm)

3 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Electrical

120V

2.9 Amp

50/60 Hz

.23 kWh (Avg.),

785 BTU/hr (Avg.)

Approximate Capacity

9 Blankets

8 Solution Bottles (1 Liter Each)

Model # SWC242424-TS:

Overall Size

26.5″D x 24″W x 24.5″H

(673.1mm x 609.6mm x 622.3mm)

1 Adjustable Shelf

Chamber I.D.

23″D x 20″W x 15.25″H

(584.2mm x 508mm x 387.3mm)

4.06 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Electrical

120V

6.3 Amp

50/60 Hz

.45 kWh (Avg.),

1535 BTU/hr (Avg.)

Approximate Capacity

9 Blankets

12 Solution Bottles (1 Liter Each)

Model # SWC183024-TS:

Overall Size

20.5″D x 30″W x 24.5″H

(520.7mm x 762mm x 622.3mm)

1 Adjustable Shelf

Chamber I.D.

17″D x 26″W x 15.25″H

(431.8mm x 660.4mm x 387.3mm)

3.9 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Electrical

120V

5.7 Amp

50/60 Hz

.45 kWh (Avg.),

1535 BTU/hr (Avg.)

Approximate Capacity

18 Blankets

8 Solution Bottles (1 Liter Each)

Model # SWC243024-TS:

Overall Size

26.5″D x 30″W x 24.5″H

(673.1mm x 762mm x 622.3mm)

1 Adjustable Shelf

Chamber I.D.

23″D x 26″W x 15.25″H

(584.2mm x 660.4mm x 387.3mm)

5.27 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Electrical

120V

6.3 Amp

50/60 Hz

.45 kWh (Avg.),

1535 BTU/hr (Avg.)

Approximate Capacity

18 Blankets

20 Solution Bottles (1 Liter Each)

Model # SWC182436-TS:

Overall Size

20.5″D x 24″W x 36″H

(520.7mm x 609.6mm x 914.4mm)

2 Adjustable Shelves

Chamber I.D.

17″D x 20″W x 25″H

(431.8mm x 508mm x 635mm)

5.0 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Electrical

120V

5.7 Amp

50/60 Hz

.23 kWh (Avg.),

785 BTU/hr (Avg.)

Approximate Capacity

16 Blankets

20 Solution Bottles (1 Liter Each)

Model # SWC183036-TS:

Overall Size

20.5″D x 30″W x 36″H

(520.7mm x 762mm x 914.4mm)

2 Adjustable Shelves

Chamber I.D.

17″D x 26″W x 25″H

(431.8mm x 660.4mm x 635mm)

6.39 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

5.7 Amp

50/60 Hz

.45 kWh (Avg.),

1535 BTU/hr (Avg.)

Approximate Capacity

32 Blankets

36 Solution Bottles (1 Liter Each)

Model # SWC242436-TS:

Overall Size

26.5″D x 24″W x 36″H

(673.1mm x 609.6mm x 914.4mm)

2 Adjustable Shelves

Chamber I.D.

23″D x 20″W x 25″H

(584.2mm x 508mm x 635mm)

6.7 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Electrical

120V

6.3 Amp

50/60 Hz

.45 kWh (Avg.),

1535 BTU/hr (Avg.)

Approximate Capacity

16 Blankets

25 Solution Bottles (1 Liter Each)

Model # SWC243036-TS:

Overall Size

26.5″D x 30″W x 36″H

(673.1mm x 762mm x 914.4mm)

2 Adjustable Shelves

Chamber I.D.

23″D x 26″W x 25″H

(584.2mm x 660.4mm x 635mm)

8.65 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

6.3 Amp

50/60 Hz

.45 kWh (Avg.),

1535 BTU/hr (Avg.)

Approximate Capacity

32 Blankets

40 Solution Bottles (1 Liter Each)

Model # SWC182464-TS:

Overall Size

20.5″D x 24″W x 64.75″H

(520.7mm x 609.6mm x 1645mm)

3 Adjustable Shelves

Chamber I.D.

17″D x 20″W x 49.5″H

(431.8mm x 508mm x 1257mm)

9.74 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Electrical

120V

6.5 Amp

50/60 Hz

.47 kWh (Avg.),

1604 BTU/hr (Avg.)

Approximate Capacity

32 Blankets

48 Solution Bottles (1 Liter Each)

Model # SWC242464-TS:

Overall Size

26.5″D x 24″W x 64.75″H

(673.1mm x 609.6mm x 1645mm)

3 Adjustable Shelves

Chamber I.D.

23″D x 20″W x 51″H

(584.2mm x 508mm x 1295mm)

13.60 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

6.5 Amp

50/60 Hz

.41 kWh (Avg.),

1604 BTU/hr (Avg.)

Approximate Capacity

80 Blankets

120 Solution Bottles (1 Liter Each)

Model # SWC183064-TS:

Overall Size

20.5″D x 30″W x 64.75″H

(520.7mm x 762mm x 1645mm)

3 Adjustable Shelves

Chamber I.D.

17″D x 26″W x 51″H

(431.8mm x 660.4mm x 1295mm)

13.05 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

6.3 Amp

50/60 Hz

.41 kWh (Avg.),

1400 BTU/hr (Avg.)

Approximate Capacity

66 Blankets

72 Solution Bottles (1 Liter Each)

Model # SWC243064-TS:

Overall Size

26.5″D x 30″W x 64.75″H

(673.1mm x 762mm x 1645mm)

3 Adjustable Shelves

Chamber I.D.

23″D x 26″W x 51″H

(584.2mm x 660.4mm x 1295mm)

17.65 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

6.5 Amp

50/60 Hz

.41 kWh (Avg.),

1604 BTU/hr (Avg.)

Approximate Capacity

80 Blankets

120 Solution Bottles (1 Liter Each)

Model # SWC182474-TS:

Overall Size

20.5″D x 24″W x 74.5″H

(520.7mm x 609.6mm x 1892mm)

2 Adjustable Shelves

1 Fixed Shelf

Chamber I.D.

17″D x 20″W x 61″H

(431.8mm x 508mm x 1549mm)

12 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

6.5 Amp

50/60 Hz

.47 kWh (Avg.),

1604 BTU/hr (Avg.)

Approximate Capacity

32 Blankets

60 Solution Bottles (1 Liter Each)

Model # SWC183074-TS:

Overall Size

20.5″D x 30″W x 74.5″H

(520.7mm x 762mm x 1892mm)

2 Adjustable Shelves

1 Fixed Shelf

Chamber I.D.

17″D x 26″W x 61″H

(431.8mm x 660.4mm x 1549mm)

15.60 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

6.5 Amp

50/60 Hz

.47 kWh (Avg.),

1604 BTU/hr (Avg.)

Approximate Capacity

80 Blankets

72 Solution Bottles (1 Liter Each)

Model # SWC242474-TS:

Overall Size

26.5″D x 24″W x 74.5″H

(673.1mm x 609.6mm x 1892mm)

2 Adjustable Shelves

1 Fixed Shelf

Chamber I.D.

23″D x 20″W x 61″H

(584.2mm x 508mm x 1549mm)

16.24 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

6.5 Amp

50/60 Hz

.47 kWh (Avg.),

1604 BTU/hr (Avg.)

Approximate Capacity

80 Blankets

120 Solution Bottles (1 Liter Each)

Model # SWC243074-TS:

Overall Size

26.5″D x 30″W x 74.5″H

(673.1mm x 762mm x 1892mm)

2 Adjustable Shelves

1 Fixed Shelf

Chamber I.D.

23″D x 26″W x 61″H

(584.2mm x 660.4mm x 1549mm)

21.1 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

6.5 Amp

50/60 Hz

.47 kWh (Avg.),

1604 BTU/hr (Avg.)

Approximate Capacity

80 Blankets

120 Solution Bottles (1 Liter Each)
