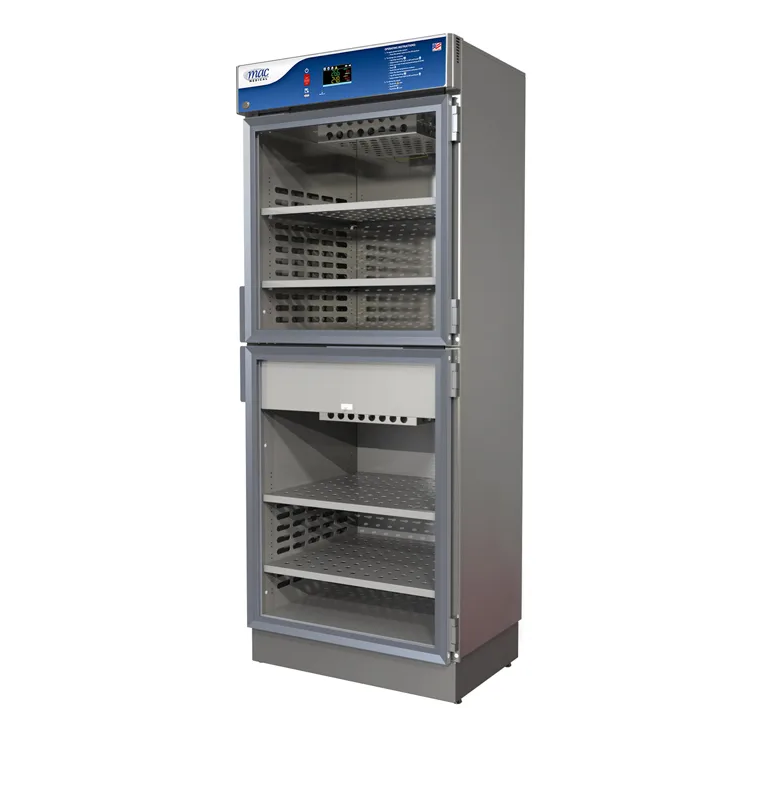

Mac Medical TS-Series Dual Chamber Warming Cabinets - New

Touch Screen with Ethernet/Wi-Fi Capability

The Ethernet/Wi-Fi capable TS-Series Blanket & Fluid Warming Cabinets offer unparalleled technology by allowing remote connectivity to your warmer (via smart phone app), giving you control of your warmer wherever you are. These warmers provide the perfect blend of leading technology, value, and customer support in the industry.



STANDARD FEATURES

  • Intuitive touch screen control
  • Intuitive software (supports multiple languages)
  • Data logging with digital signatures
  • View live trends
  • Alarm logging
  • Multi-level user security
  • Operator audit trail
  • Built in Ethernet
  • Wi-Fi capable (router to be supplied by end user)
  • Remote monitoring & control (VNC)
  • Remote tech support & diagnostics
  • Text and email alarm notifications
  • File transfer via USB or FTP web page
  • Smart phone/device access
  • Top chamber integrated door lock
OPTIONAL FEATURES
  • Full view glass door
  • Left hand door hinge
  • Mobile base or stand
  • 220/240V power supply
  • Two (2) recessed unit options
  • Celsius
  • Seismic braces
  • Roll out basket(s) with cool touch handles
  • Pass through chamber
  • Sloped top
  • Keyed door lock for lower chamber units
  • Electronic keypad lock
  • Custom sizes available

Models:

Model # DWC182464T-TS:

Overall Size

20.5″D x 24″W x 64.75″H

(520.7mm x 609.6mm x 1645mm)

7.47 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

17″D x 20″W x 13.5″H

(431.8mm x 508mm x 342.9mm)

2.65 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Lower Chamber I.D.

17″D x 20″W x 24.5″H

(431.8mm x 508mm x 622.3mm)

4.82 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.9 Amp

50/60 Hz

.65 kWh (Avg.),

2218 BTU/hr (Avg.)

Approximate Capacity

26 Blankets

36 Solution Bottles (1 Liter Each)

Model # DWC242464T-TS:

Overall Size

26.5″D x 24″W x 64.75″H

(673.1mm x 609.6mm x 1645mm)

10.11 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

23″D x 20″W x 13.5″H

(584.2mm x 508mm x 342.9mm)

3.59 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Lower Chamber I.D.

23″D x 20″W x 24.5″H

(584.2mm x 508mm x 622.3mm)

6.52 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.3 Amp

50/60 Hz

.60 kWh (Avg.),

2047 BTU/hr (Avg.)

Approximate Capacity

52 Blankets

80 Solution Bottles (1 Liter Each)

Model # DWC183064T-TS:

Overall Size

20.5″D x 30″W x 64.75″H

(520.7mm x 762mm x 1645mm)

9.72 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

17″D x 26″W x 13.5″H

(431.8mm x 660.4mm x 342.9mm)

3.45 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Lower Chamber I.D.

17″D x 26″W x 24.5″H

(431.8mm x 660.4mm x 622.3mm)

6.27 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.3 Amp

50/60 Hz

.60 kWh (Avg.),

2047 BTU/hr (Avg.)

Approximate Capacity

50 Blankets

54 Solution Bottles (1 Liter Each)

Model # DWC243064T-TS:

Overall Size

26.5″D x 30″W x 64.75″H

(673.1mm x 762mm x 1645mm)

13.15 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

23″D x 26″W x 13.5″H

(584.2mm x 660.4mm x 342.9mm)

4.67 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Lower Chamber I.D.

23″D x 26″W x 24.5″H

(584.2mm x 660.4mm x 622.3mm)

8.48 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.9 Amp

50/60 Hz

.65 kWh (Avg.),

2218 BTU/hr (Avg.)

Approximate Capacity

52 Blankets

96 Solution Bottles (1 Liter Each)

Model # DWC182474T-TS:

Overall Size

20.5″D x 24″W x 74.5″H

(520.7mm x 609.6mm x 1892mm)

9.44 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

17″D x 20″W x 15.25″H

(431.8mm x 508mm x 387.3mm)

2.65 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Lower Chamber I.D.

17″D x 20″W x 34.5″H

(431.8mm x 508mm x 876.3mm)

6.79 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.9 Amp

50/60 Hz

.65 kWh (Avg.),

2218 BTU/hr (Avg.)

Approximate Capacity

32 Blankets

48 Solution Bottles (1 Liter Each)

Model # DWC242474T-TS:

Overall Size

26.5″D x 24″W x 74.5″H

(673.1mm x 609.6mm x 1892mm)

13.24 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

23″D x 20″W x 15.25″H

(584.2mm x 508mm x 387.3mm)

4.06 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Lower Chamber I.D.

23″D x 20″W x 34.5″H

(584.2mm x 508mm x 876.3mm)

9.18 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

8.9 Amp

50/60 Hz

.65 kWh (Avg.),

2218 BTU/hr (Avg.)

Approximate Capacity

52 Blankets

80 Solution Bottles (1 Liter Each)

Model # DWC183074T-TS:

Overall Size

20.5″D x 30″W x 74.5″H

(520.7mm x 762mm x 1892mm)

12.27 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

17″D x 26″W x 15.25″H

(431.8mm x 660.4mm x 387.3mm)

3.45 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Lower Chamber I.D.

17″D x 26″W x 34.5″H

(431.8mm x 660.4mm x 876.3mm)

8.82 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.3 Amp

50/60 Hz

.82 kWh (Avg.),

2047 BTU/hr (Avg.)

Approximate Capacity

52 Blankets

72 Solution Bottles (1 Liter Each)

Model # DWC243074T-TS:

Overall Size

26.5″D x 30″W x 74.5″H

(673.1mm x 762mm x 1892mm)

17.21 Cubic Feet Storage

3 Adjustable Shelves

Upper Chamber I.D.

23″D x 26″W x 15.25″H

(584.2mm x 660.4mm x 387.3mm)

5.28 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 1° F)

Lower Chamber I.D.

23″D x 26″W x 34.5″H

(584.2mm x 660.4mm x 876.3mm)

11.93 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 3° F)

Electrical

120V

12.5 Amp

50/60 Hz

.90 kWh (Avg.),

3071 BTU/hr (Avg.)

Approximate Capacity

52 Blankets

120 Solution Bottles (1 Liter Each)

Model # DWC182474E-TS:

Overall Size

20.5″D x 24″W x 74.5″H

(520.7mm x 609.6mm x 1892mm)

10.21 Cubic Feet Storage

4 Adjustable Shelves

Upper Chamber I.D.

17″D x 20″W x 25″H

(431.8mm x 508mm x 635mm)

4.97 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Lower Chamber I.D.

17″D x 20″W x 26″H

(431.8mm x 508mm x 660.4mm)

5.24 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.9 Amp

50/60 Hz

.65 kWh (Avg.),

2218 BTU/hr (Avg.)

Approximate Capacity

44 Blankets

48 Solution Bottles (1 Liter Each)

Model # DWC183074E-TS:

Overall Size

20.5″D x 30″W x 74.5″H

(520.7mm x 762mm x 1892mm)

13.04 Cubic Feet Storage

4 Adjustable Shelves

Upper Chamber I.D.

17″D x 26″W x 25″H

(431.8mm x 660.4mm x 635mm)

6.39 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Lower Chamber I.D.

17″D x 26″W x 26″H

(431.8mm x 660.4mm x 660.4mm)

6.65 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

11.4 Amp

50/60 Hz

.82 kWh (Avg.),

2798 BTU/hr (Avg.)

Approximate Capacity

64 Blankets

72 Solution Bottles (1 Liter Each)

Model # DWC242474E-TS:

Overall Size

26.5″D x 24″W x 74.5″H

(673.1mm x 609.6mm x 1892mm)

13.64 Cubic Feet Storage

4 Adjustable Shelves

Upper Chamber I.D.

23″D x 20″W x 25″H

(584.2mm x 508mm x 635mm)

6.65 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Lower Chamber I.D.

23″D x 20″W x 26″H

(584.2mm x 508mm x 660.4mm)

6.99 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

8.9 Amp

50/60 Hz

.65 kWh (Avg.),

2218 BTU/hr (Avg.)

Approximate Capacity

64 Blankets

80 Solution Bottles (1 Liter Each)

Model # DWC243074E-TS:

Overall Size

26.5″D x 30″W x 74.5″H

(673.1mm x 762mm x 1892mm)

17.64 Cubic Feet Storage

4 Adjustable Shelves

Upper Chamber I.D.

23″D x 26″W x 25″H

(584.2mm x 660.4mm x 635mm)

8.65 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Lower Chamber I.D.

23″D x 26″W x 26″H

(584.2mm x 660.4mm x 660.4mm)

8.99 Cubic Feet Storage

Temperature Range 90°-160° F

(Tolerance +/- 2° F)

Electrical

120V

12.5 Amp

50/60 Hz

.90 kWh (Avg.),

3071 BTU/hr (Avg.)

Approximate Capacity

64 Blankets

120 Solution Bottles (1 Liter Each)
