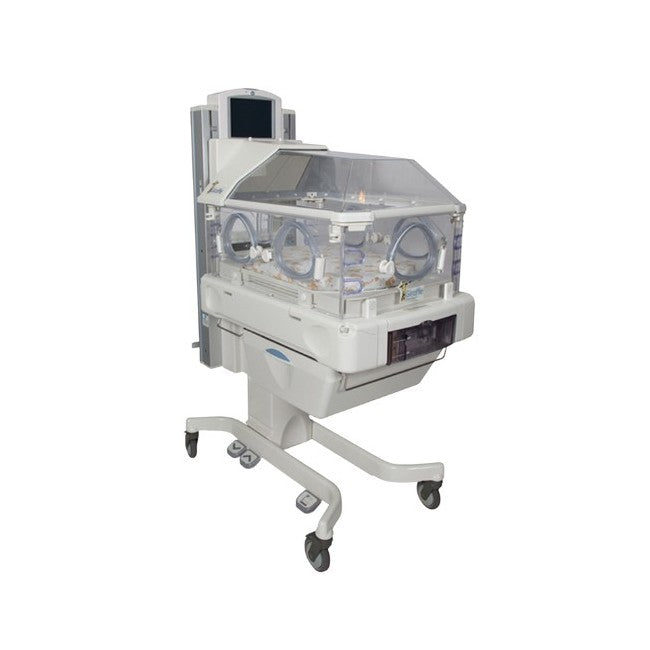

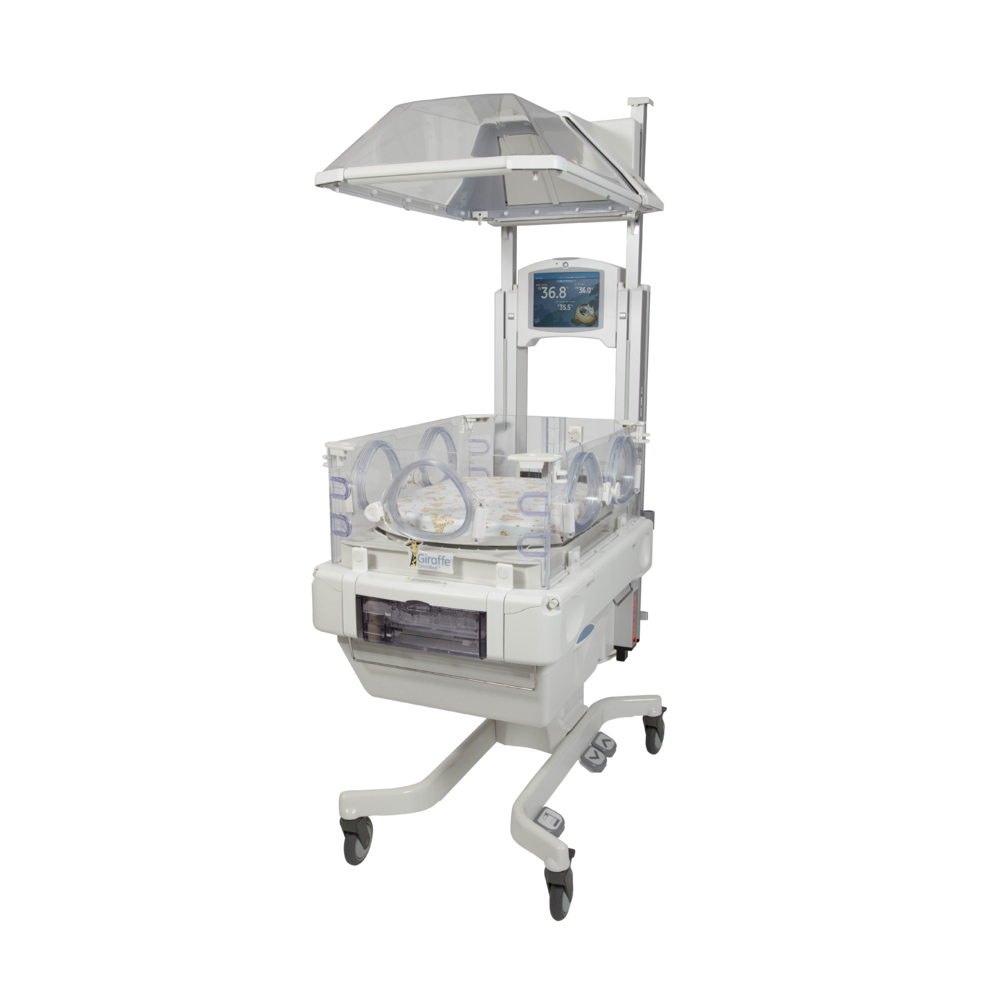

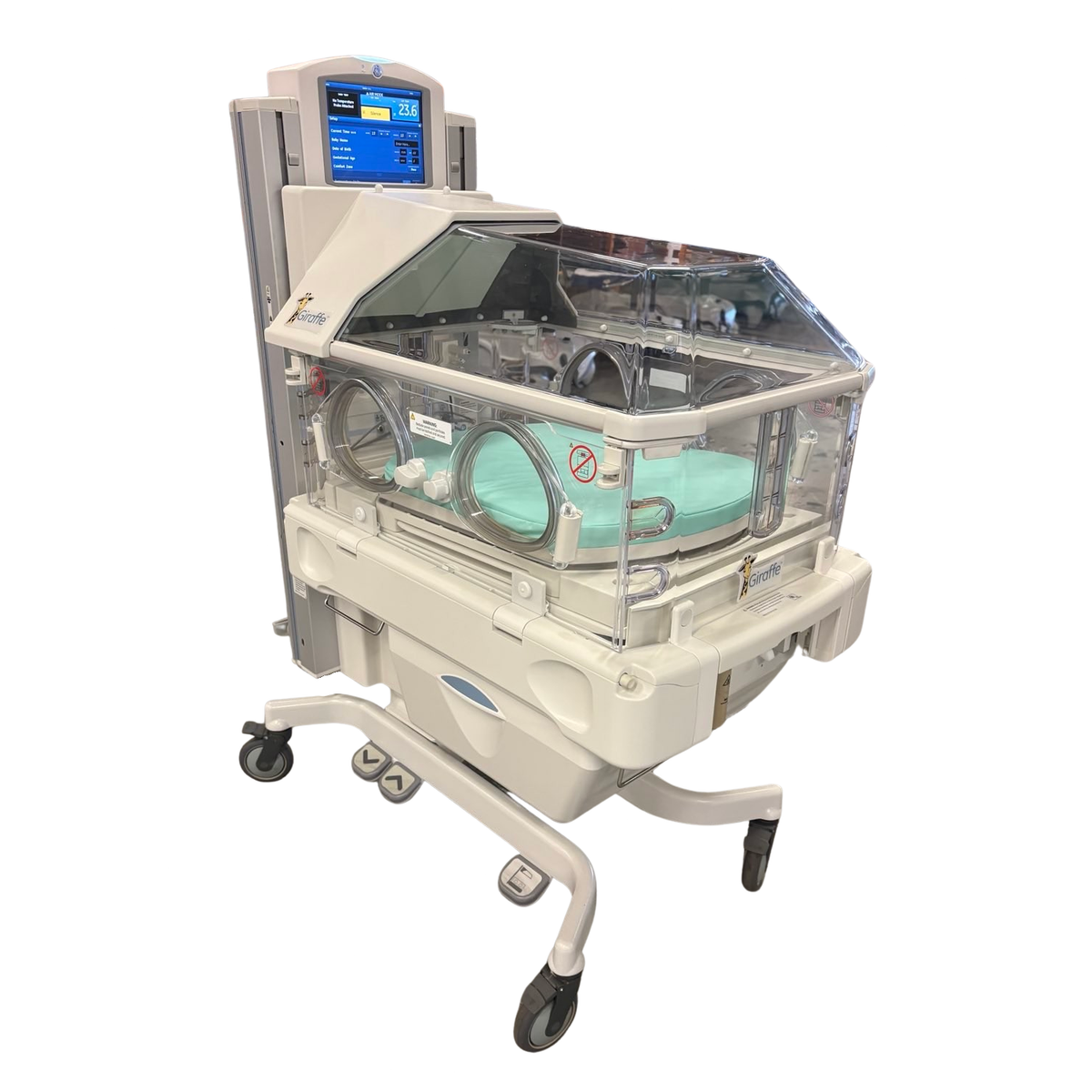

GE Giraffe Omnibed Infant Incubator / Care Center - Refurbished

  • Incubator with an Air Curtain to protect from heat loss
  • Radiant warmer that provides consistent heat in any position
  • A consistent and controlled thermal environment
  • Improved access to patient
  • A less stressful environment for the patient and family
  • No need to transfer patient from incubator to infant warmer
  • 360 degree rotating patient mattress
  • Drop down removable doors and rotating bed provide easy access In-Bed scale

The Giraffe OmniBed is a richly-featured neonatal microenvironment that combines the thermal advantages of a double-walled incubator with the access advantages of an open bed radiant warmer. Conversion between an incubator and an open bed warmer happens in seconds with a touch of a button. In either open or closed bed operation, the OmniBed provides precise microprocessor controlled thermal support. Stress on the infant, staff, and family members is reduced by eliminating the need to transfer the baby between incubators and warmers. Less equipment is now required for caregiving, cleaning, service, and storage. The OmniBed pioneered developmentally appropriate features including the patented Baby Susan rotating mattress and internal bed tilt. The GE Giraffe OmniBed combines two traditional infant care products in one. A full- featured incubator and a radiant warmer in one. Protects from heat loss while the bi-di- rectional maintains thermal stability. Infant receives uniform heat regardless of position.

GE Giraffe OmniBed Incubator Specifications

Dimensions

  • Maximum height: Canopy down: 70 in (178 cm) Canopy up: 94 in (239 cm)
  • Minimum height: Canopy down: 60 in (152 cm) Canopy up: 82.3 in (209 cm)
  • Footprint: 45 in x 26 in (114 cm x 66 cm)
  • Weight: 328.5 lb. (149kg)
  • Floor to mattress height: 33 in to 43 in (84 cm to 109 cm)
  • Mattress size: 25.5 in x 19.2 in (64.8 cm x 48.8 cm)
  • Accessdoorsize: 9 in x 31 in (23 cm x 78 cm)
  • Drawersize: 19 in x 20 in (48 cm x 50 cm)
  • Drawer depth: 8 in (20 cm)

Physical Characteristics

  • Full Color Touch Display: 10.4 in (26.4cm) LCD
  • Mattress tilt angle: 12, &continuously variable
  • Micro filter: 0.5µ -99.8% efficiency (3M FiltreteTM)
  • Data collection: RS-232
  • Tubing access ports: 8

User Control Settings

  • Baby (servo) temperature control: 35-37.5°C in 0.1° increments (Regulates baby temperature in both open and closed bed modes)
  • Manual radiant power control: 0-100% in 5% increments
  • Air temperature control: 20-39°C in 0.1° increments
  • Servo humidity control range: 30-95% relative humidity in 5% increments

In-Bed Scale Performance

  • Accuracy: ±0.35oz (10g)
  • Range: 0.66lbs. to 17.6lb. (300g to 8kg)

Servo Oxygen Control Performance

  • Control range: 21% to 65%
  • Display range: 16 to 70%
  • Rise Time: < 10 minutes from 5% below set point in Whisper Quiet Mode after open door
  • Recovery from opening porthole: ≤ 5 minutes from closing porthole to 5% below set point
  • Alarms: ±3% from set point
  • Accuracy 5%

Humidifier Performance

  • Recovery time: < 15 minutes (typical) Recovery to 75% RH with 39°C air set temperature
  • Operating time between refills: > 12 hours @ 65% RH control setting in a 25°C/50% RH ambient
  • Reservoir capacity: 1000 ml
  • Servo Control Accuracy: ±10% for settings up to 85%: minimum 75% for settings > 85%
  • Ramp-up time: ≤ 50 minutes - Time to reach 75% RH with a 39°C control temp from cold start in 25° C, 50% RH room.

Operating Environment

  • Temperature: 20° to 30°C
  • Humidity: 5 to 85% RH (non-condensing)
  • Air Velocity: Up to 0.3m/sec
  • Water Ingress: IPXO

Storage/Shipping Information

  • Temperature: -25° to 60°C
  • Humidity: ≤ 85% RH (non-condensing)
  • Pressure: 50-106k Pa
